Alnico 5 deep pot magnet Red painted internal threaded mounting pot magnet
Alnico Deep Pot Magnets are easily demagnetized and re-magnitized and do not corrode. They are made by casting aluminum, cobalt and nickel with iron and other metals to enhance their grade’s specific properties. These magnets can be made into different shapes and produce highly magnetic fields in certain configurations. These corrosion-resistant magnets can be plated with a variety of metals or coated with red enamel or paint.
FEATURE:
1, Comes in a variety of shapes
2, Designed with Alnico magnet
3, Magnetism remains stable even in high temperatures
4, High performance, maximum energy and coercive force
5, Mature Technology
Suitable for High Temperature and General Purpose Holding Applications. Alnico is the original magnetic material and is still useful for very high temperature applications. This range of deep pots has threaded hole in the back of the case only.
Alnico Holding Assemblies, Alnico Pot magnets are used in the area of gauge stands, lifting magnets, dial stands, work piece securing and jigs & fixtures. These pot magnets are industry standard in English-speaking countries, the installed alloy magnet AlNiCo is built in with an spacer collar made of aluminum in a soft iron pot. As a result, it keeps the holding force concentrated onto the holding area. While working above 450 °C, precaution must be taken of possible mechanical loosening through expansion and contraction of the component parts. High performance, maximum energy and coercive force, Good corrosion resistance. Deep Pot Holding Magnets
| AlNiCo Magnet POT |
| Shape | Cylinder Shape |
| Size | Custom sizes |
| Grade | Alnico2/3/4/5 |
| Working Temperature | The Max Working Temp can reach 550 degrees |
| MOQ | 1000pcs |
| Lead time | 35 days |
Customized:
Logo: it could be marked upon your design.
Size: It also could be made according to your requests.
Package: gift box package or customized
Sample:
Sample of magnet hooks in ready is free to provide or produced according to your detailed requirement.
Payment:
For small amount, our usual way of payment is 100% T/T in advance, or Papal.
For large amount, we also could accept 30% prepayment before production, 70% after fax of Bill of loading.
Delivery time:
We will assess each delivery time and try our best to finish in time.
After-sales service:
If you have any questions after you receiving our products, for delivery, for package or even quality and so on, please be free to contact us anytime and we could do different solutions for you within 24 hours.
Packaging
a. Plastic separation will be put between magnets, then customer could be easily separate.
b. Batch magnets will be put in small white box.
c. 8 white carton boxes(120x80x55mm) will be put in a carton (355x280x160mm).Foam form will be put between white boxes to avoid broken during shipment.
d.If shipping by express or by air,will put iron sheet between foam and external carton to shield the magnetic field.
e. More than 10 cartons will be packed to pallet, specially for shipment by sea.
Shipment and shipping:
We will offer best solution after considering your details condition.
(1) Express:We cooperate with courier companies (DHL,TNT,Fedex and so on) for many years,and signed agreement with them to get big discount from them. For order below 45kgs,we usually suggest customer choose courier delivery door to door.
(2) Air shippment is suitable for order more than 45kgs.
(3) Sea shippment is suitable for goods more than 100 kgs.
Product Tags:
|
|

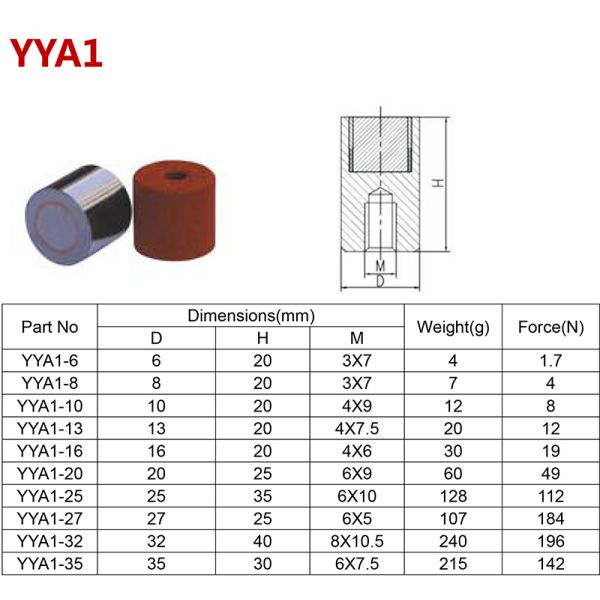

Alnico 5 Internal Threaded Deep Pot Magnets Images
|
